SteppIR Simulation 6m
SteppIR Simulation
SteppIR element length in [inch]. Frequency in [MHz]. Values read out from controller.
Navigate
Navigate
6m
BAND DIR DVR REF Position FREQ 6m 103 108,8 115,3 0° 50,13 6m - - - 180° 50,13 6m 94,1 105,9 99,3 bidir 50,13

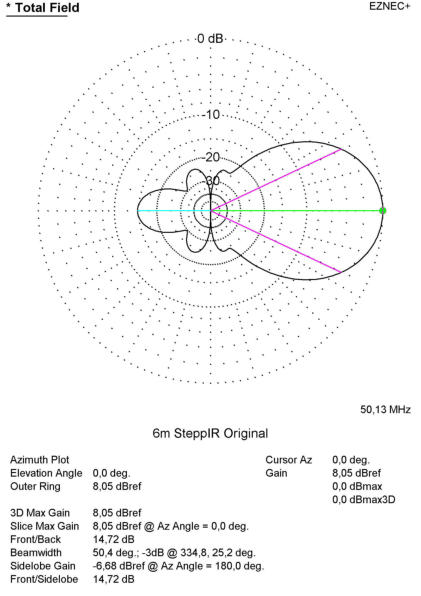

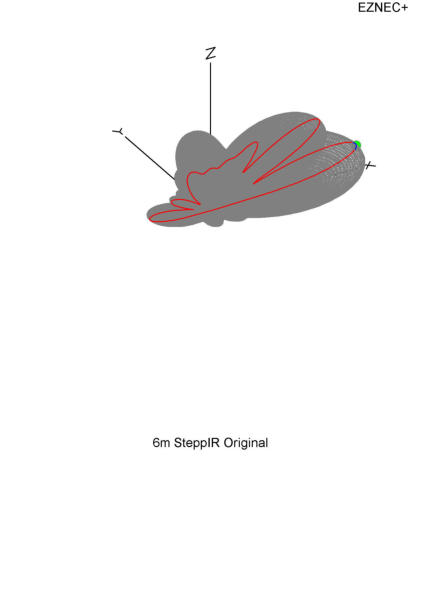

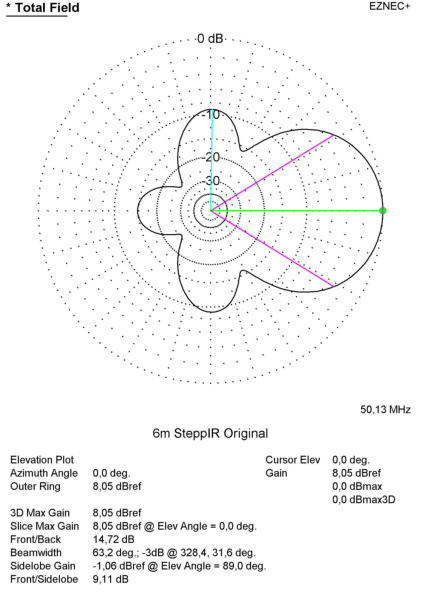

Azimuth / Elevation Plot

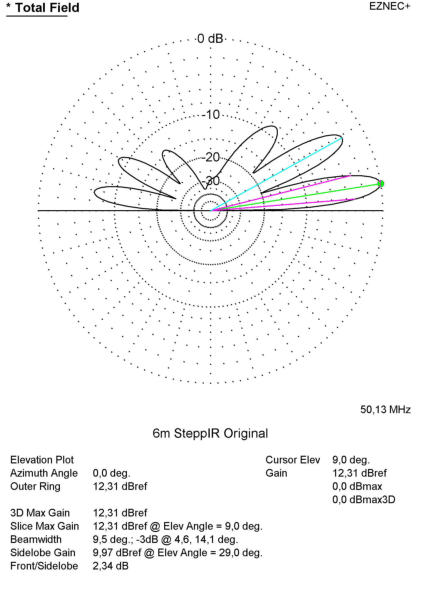

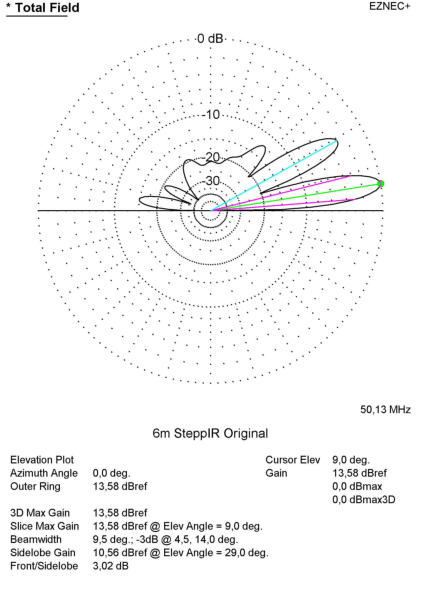

Elevation Plot over 9m ground

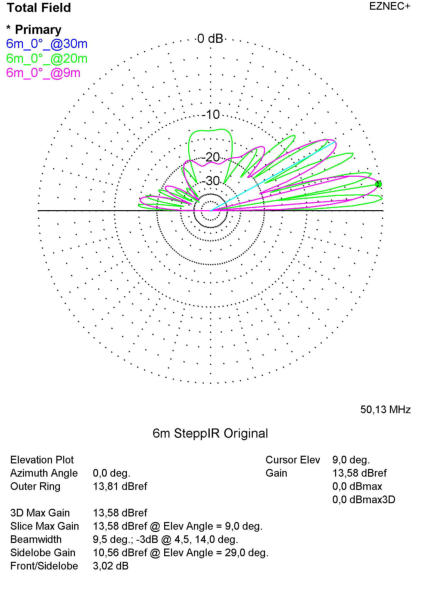

Elevation Plot Comparision / Antenna @9m, @20m and @30m over ground
Gewinn 8,05 dBD Front/Back 14,72 db
This page shows the EZNEC simulation results of a 3 Element SteppIR with the optional 6m passive element. Simulation done with fiberglas insulation. Ground type was standard Mininec.
Standard Mode (0°)
Reversed Mode (180°)

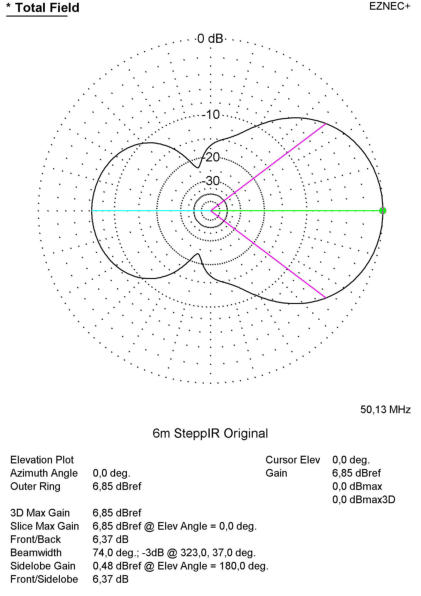

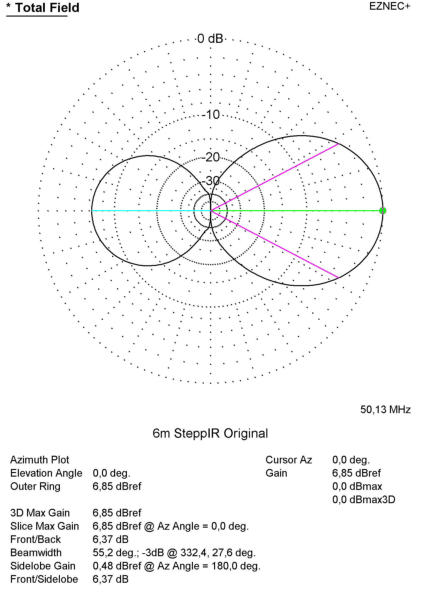

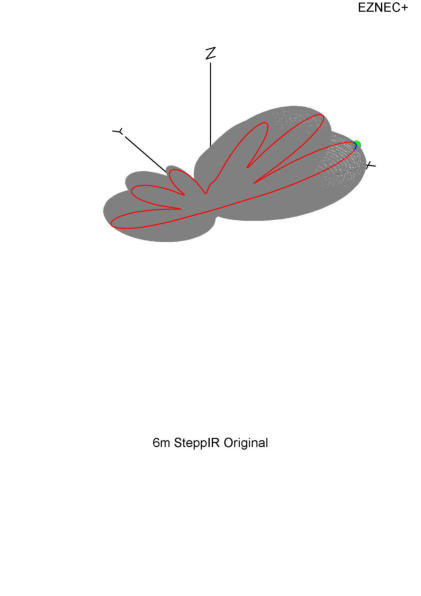

Azimuth / Elevation Plot
Elevation Plot over 9m ground
Gewinn 6,85 dBD Front/Back 6,37 db
Bidirectional Mode
!! Not possible, due to fix director element !!
