SteppIR Simulation 17m
SteppIR Simulation
SteppIR element length in [inch]. Frequency in [MHz]. Values read out from controller.
Navigate
Navigate
17m
BAND DIR DVR REF Position FREQ 17m 286,3 301,2 317,5 0° 18,13 17m 314,1 299,3 285,6 180° 18,13 17m 285,2 305,1 285,3 bidir 18,13

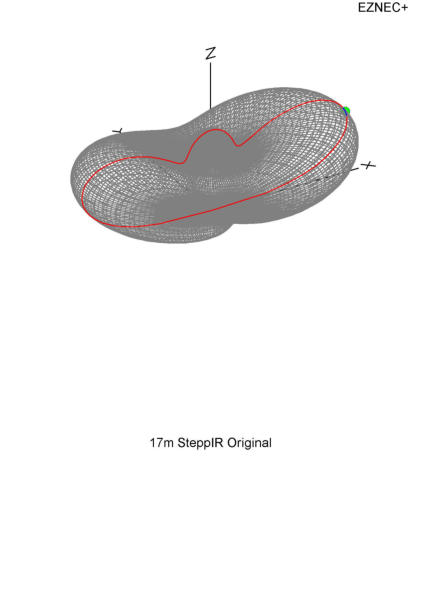

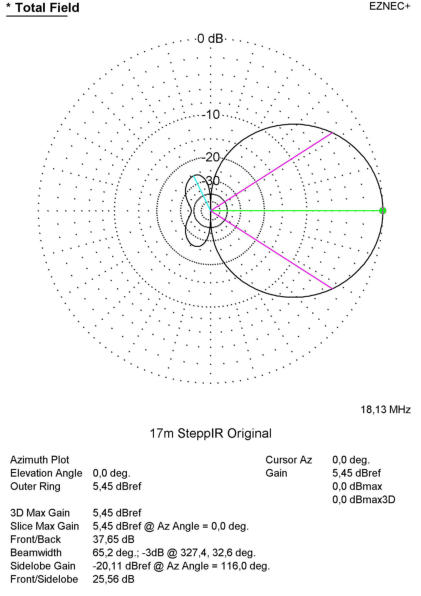

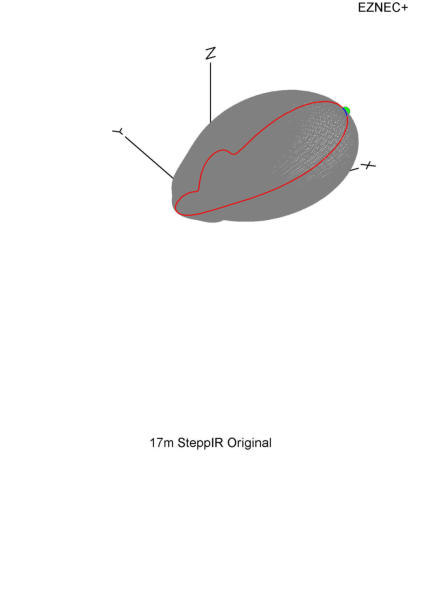

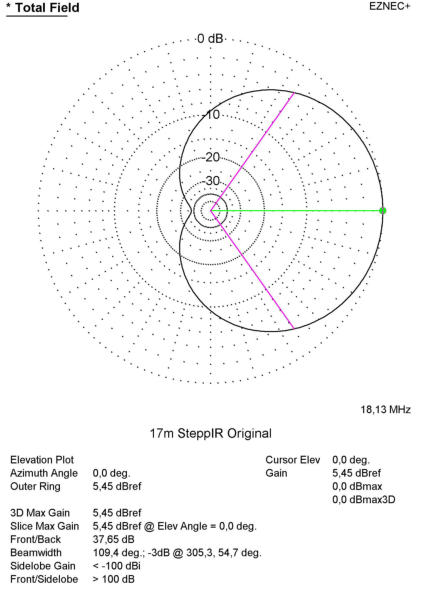

Azimuth / Elevation Plot

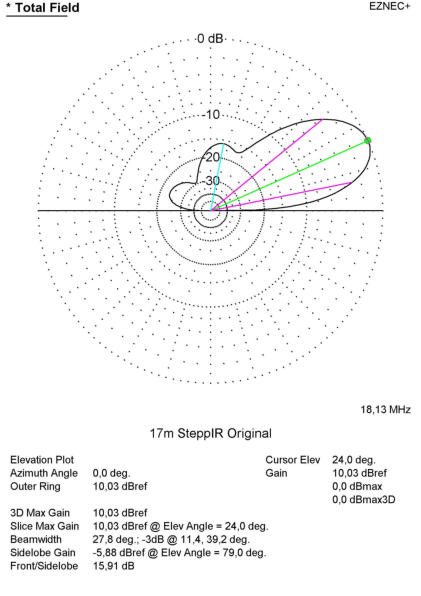

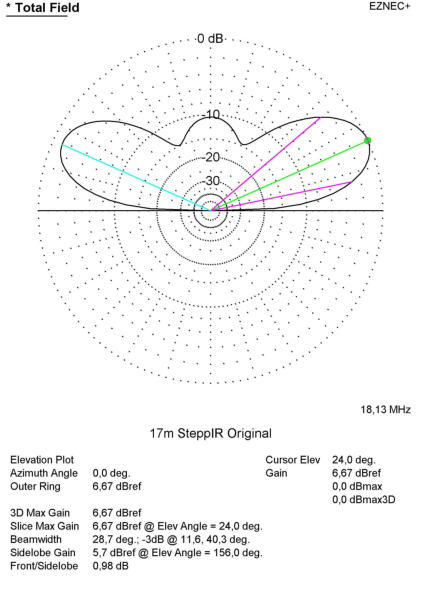

Elevation Plot over 9m ground

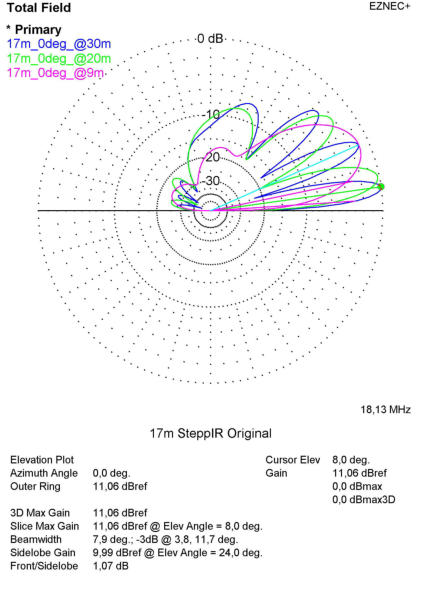

Elevation Plot Comparision / Antenna @9m, @20m and @30m over ground
Gewinn 5,45 dBD Front/Back 37,65 db
This page shows the EZNEC simulation results of a 3 Element SteppIR with the optional 6m passive element. Simulation done with fiberglas insulation. Ground type was standard Mininec.
Standard Mode (0°)

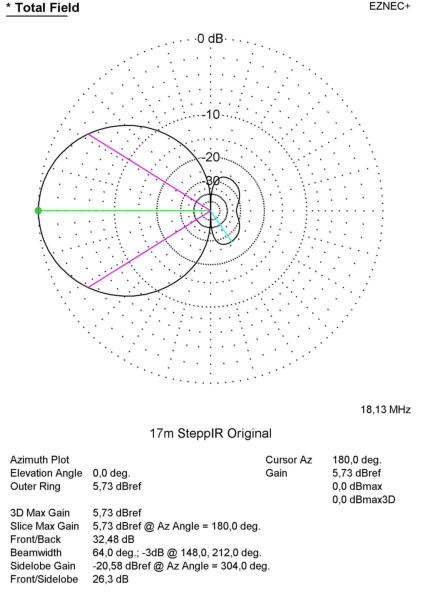

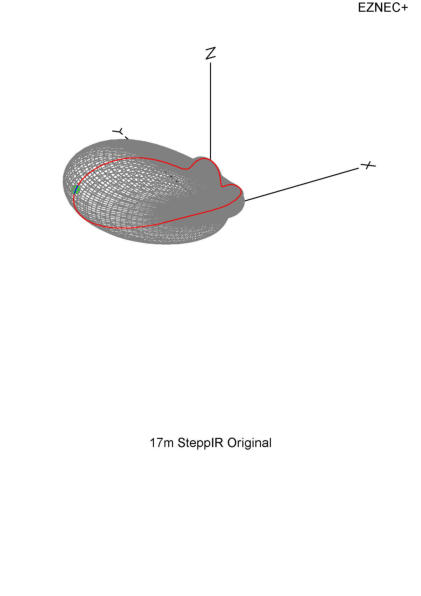

Azimuth / Elevation Plot

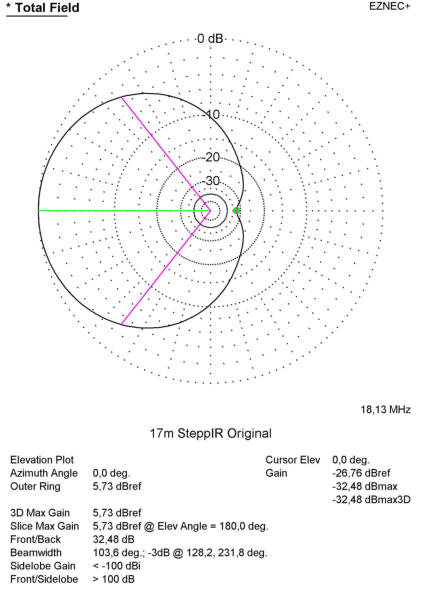

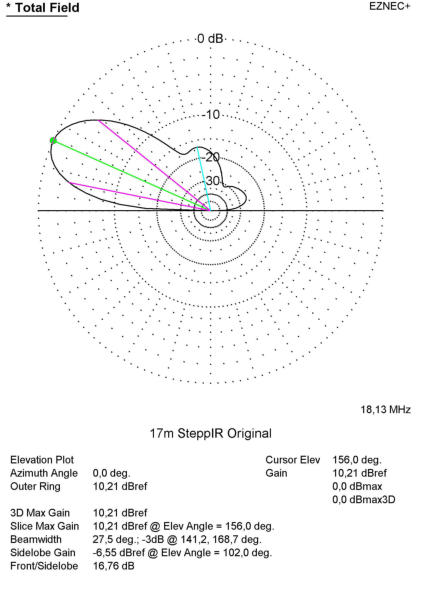

Elevation Plot over 9m ground
Gewinn 5,73 dBD Front/Back 32,48 db
Reversed Mode (180°)

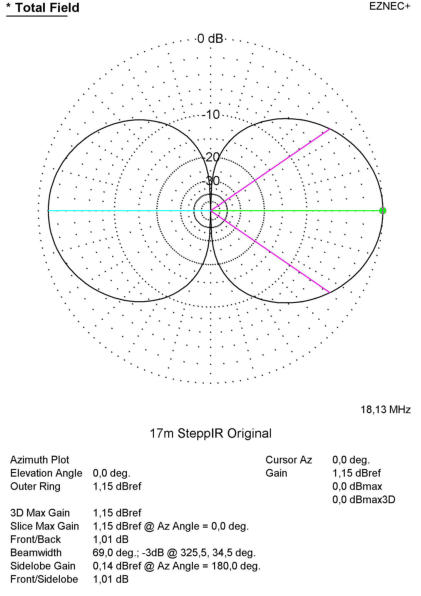

Azimuth / Elevation Plot

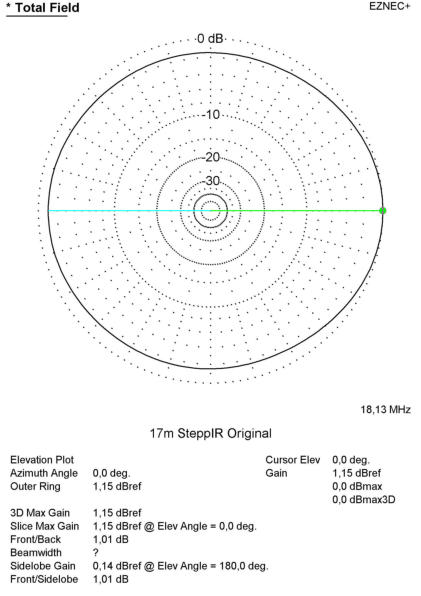

Elevation Plot over 9m ground
Gewinn 1,15 dBD Front/Back 1,01 db
Bidirectional Mode
