SteppIR Simulation 12m
SteppIR Simulation
SteppIR element length in [inch]. Frequency in [MHz]. Values read out from controller.
Navigate
Navigate
12m
BAND DIR DVR REF Position FREQ 12m 204,3 214,7 223 0° 24,92 12m 224,9 213,3 201,3 180° 24,92 12m 207,9 216,9 207,8 bidir 24,92

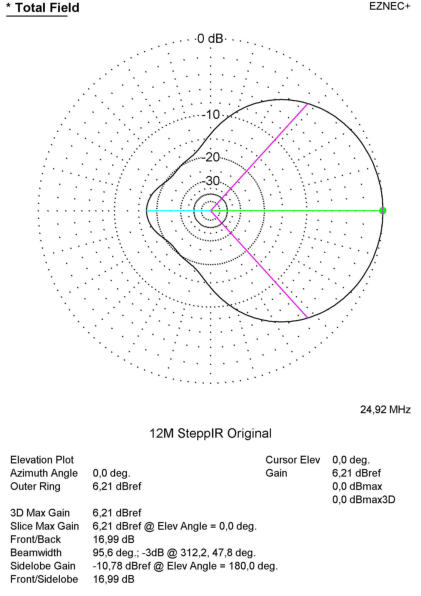

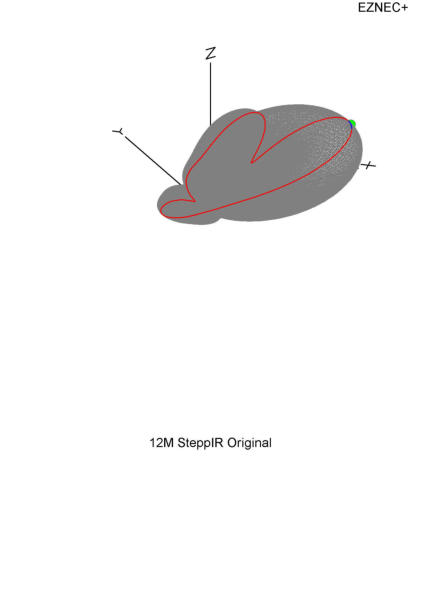

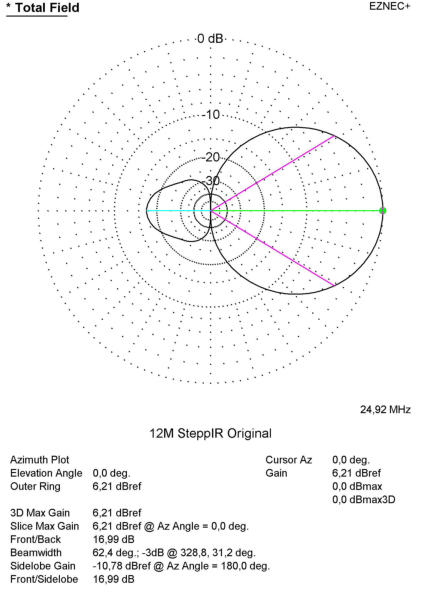

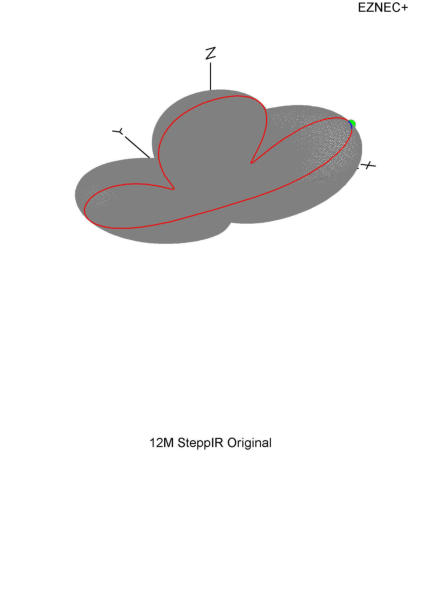

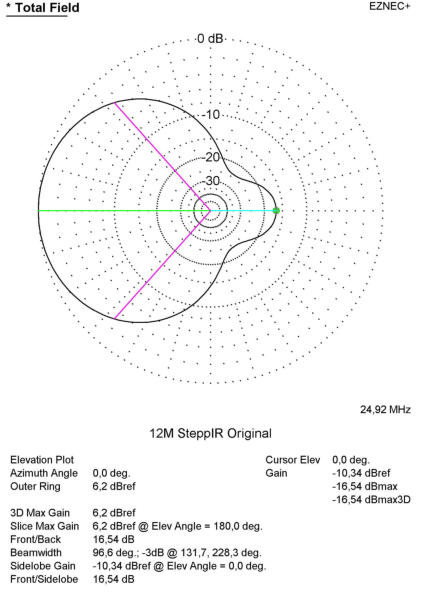

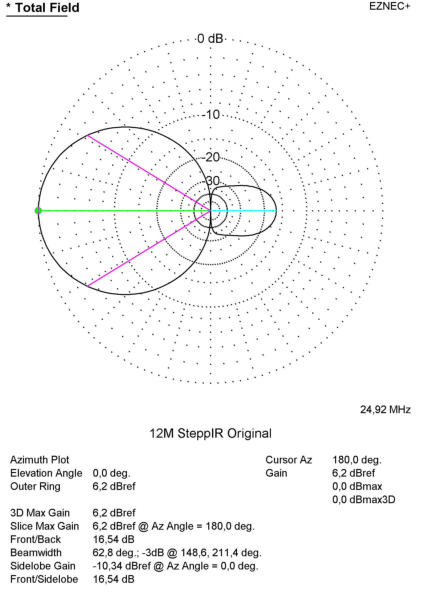

Azimuth / Elevation Plot

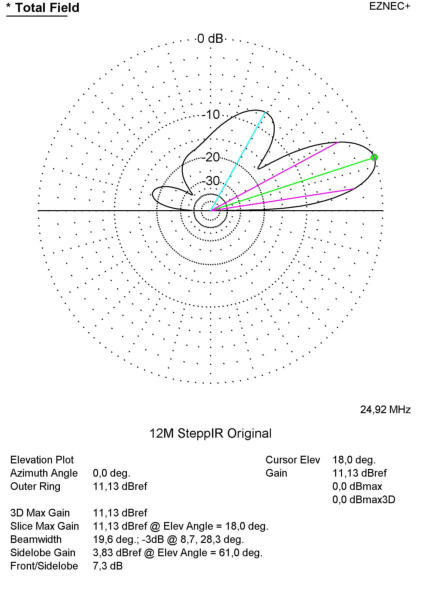

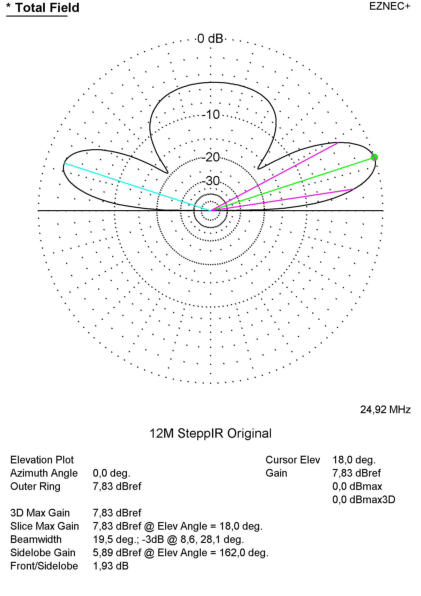

Elevation Plot over 9m ground

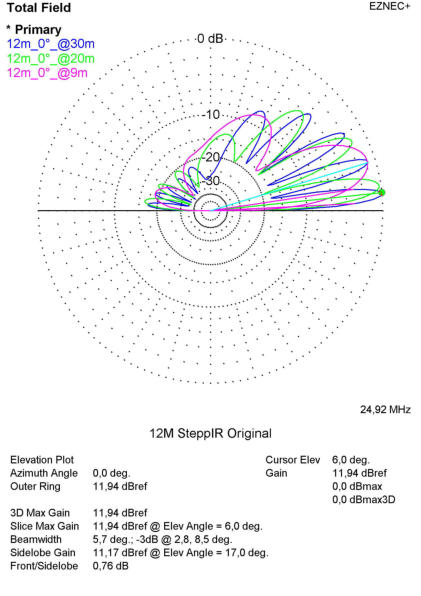

Elevation Plot Comparision / Antenna @9m, @20m and @30m over ground
Gewinn 6,21 dBD Front/Back 16,99 db
This page shows the EZNEC simulation results of a 3 Element SteppIR with the optional 6m passive element. Simulation done with fiberglas insulation. Ground type was standard Mininec.
Standard Mode (0°)
Azimuth / Elevation Plot
Elevation Plot over 9m ground
Gewinn 6,2 dBD Front/Back 16,54 db
Reversed Mode (180°)

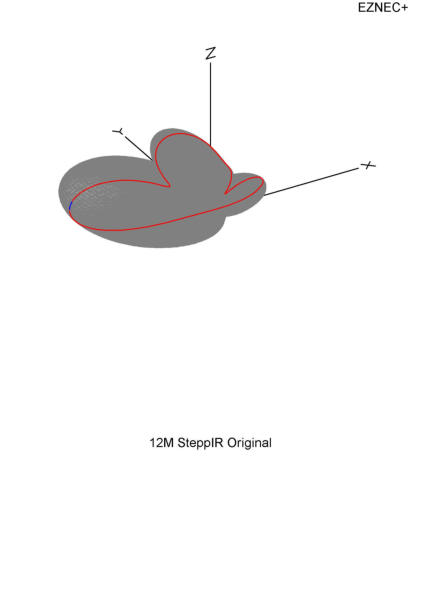

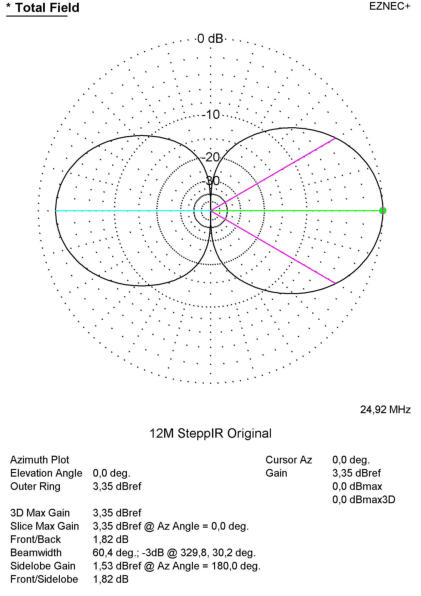

Azimuth / Elevation Plot

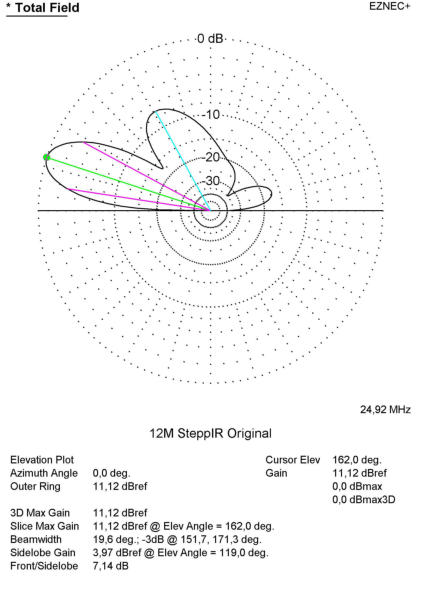

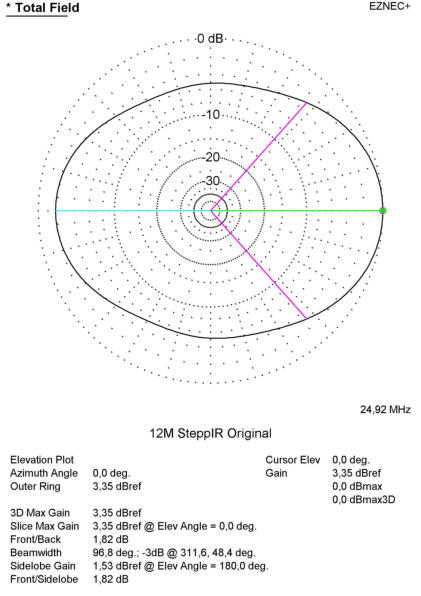

Elevation Plot over 9m ground
Gewinn 3,35 dBD Front/Back 1,82 db
Bidirectional Mode
