SteppIR Simulation 20m
SteppIR Simulation
SteppIR element length in [inch]. Frequency in [MHz]. Values read out from controller.
Navigate
Navigate
20m
BAND DIR DVR REF Position FREQ 20m 376 389 406,4 0° 14,2 20m 404,5 386,9 373 180° 14,2 20m 365,2 390,9 375,4 bidir 14,2

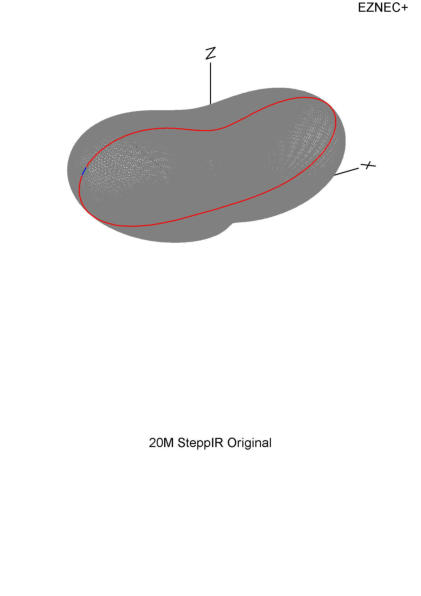

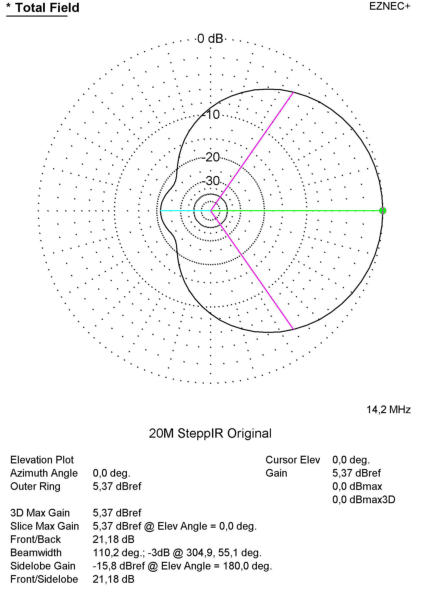

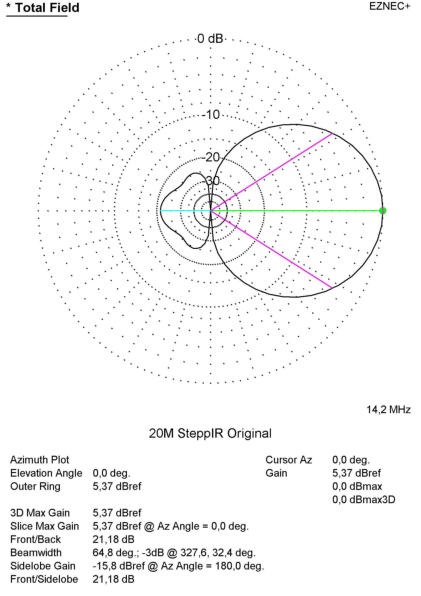

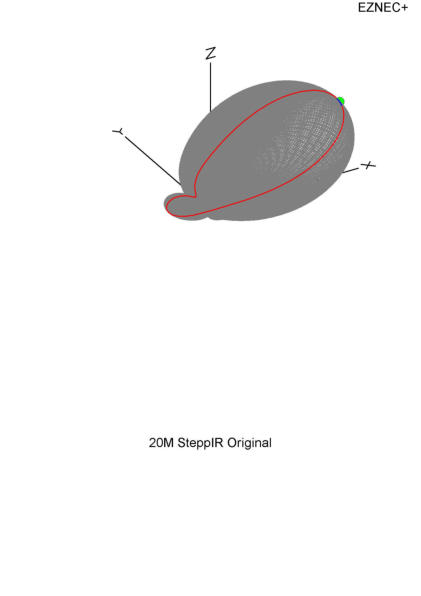

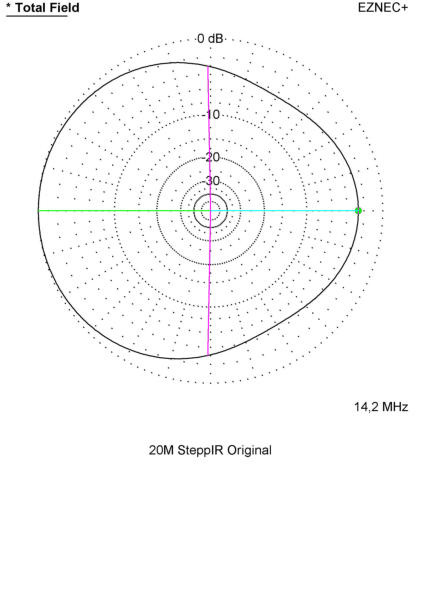

Azimuth / Elevation Plot

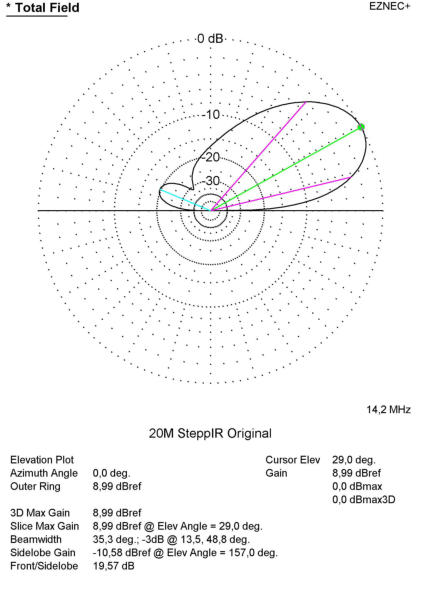

Elevation Plot over 9m ground

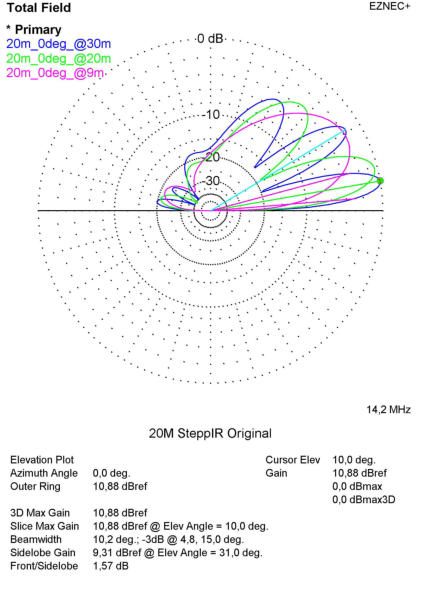

Elevation Plot Comparision / Antenna @9m, @20m and @30m over ground
Gewinn 5,37 dBD Front/Back 21,18 db
This page shows the EZNEC simulation results of a 3 Element SteppIR with the optional 6m passive element. Simulation done with fiberglas insulation. Ground type was standard Mininec.
Standard Mode (0°)

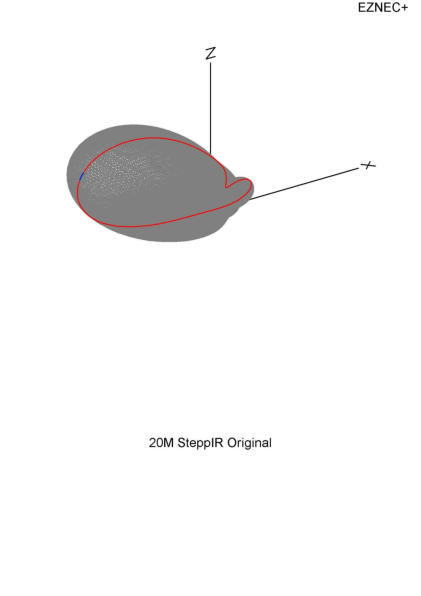

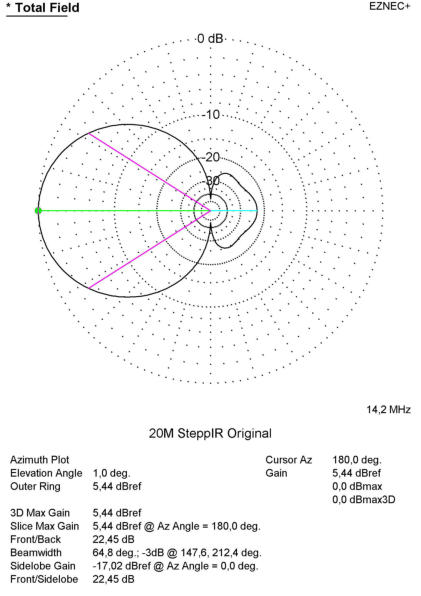

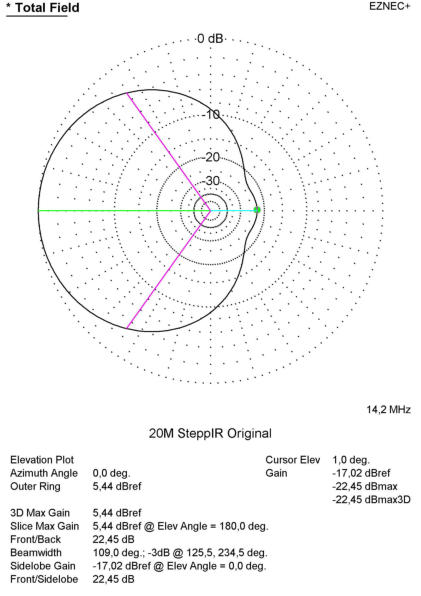

Azimuth / Elevation Plot

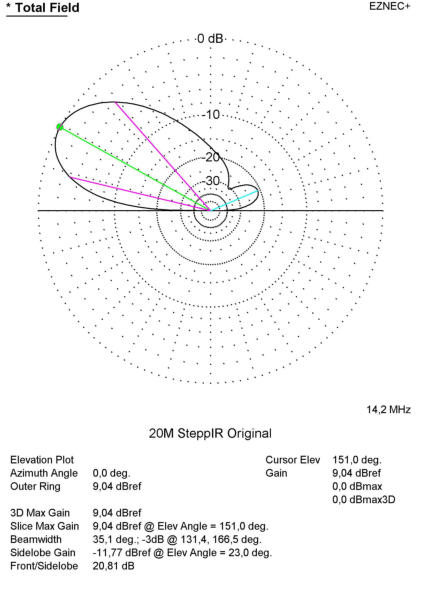

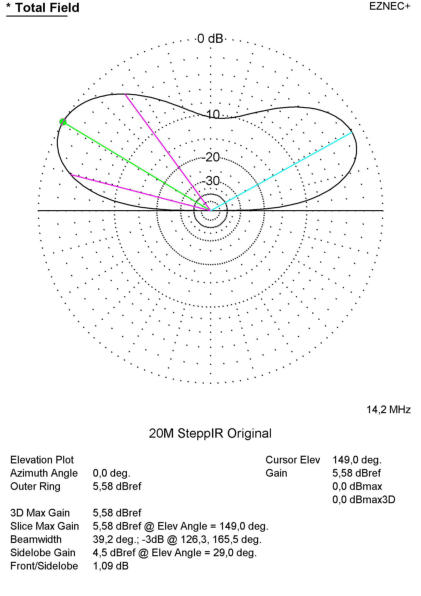

Elevation Plot over 9m ground
Gewinn 5,44 dBD Front/Back 22,45 db
Reversed Mode (180°)
Azimuth / Elevation Plot
Elevation Plot over 9m ground

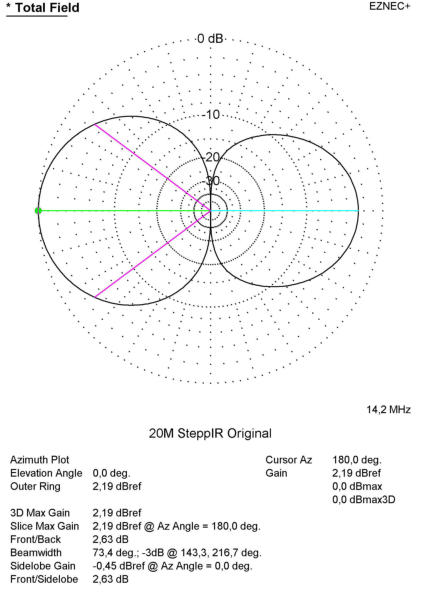

Gewinn 2,19 dBD Front/Back 2,63 db
Bidirectional Mode
