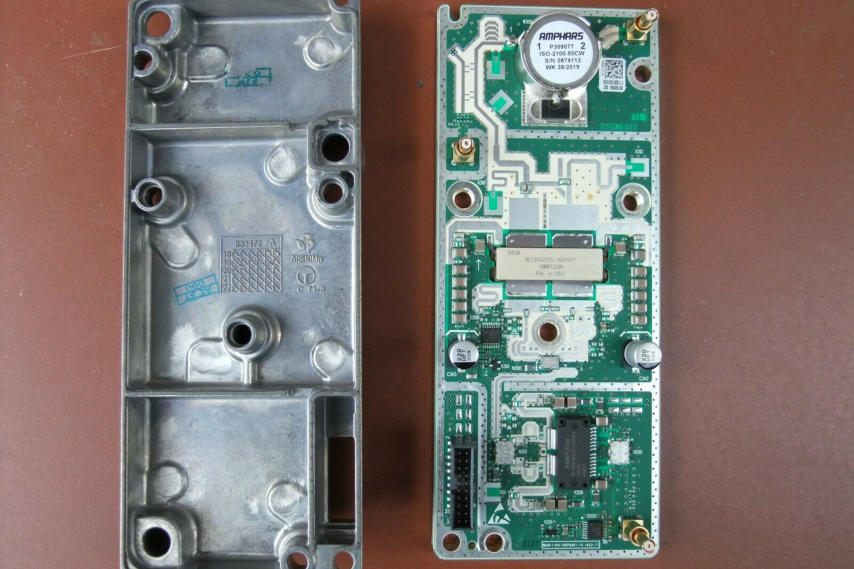

Internal Views

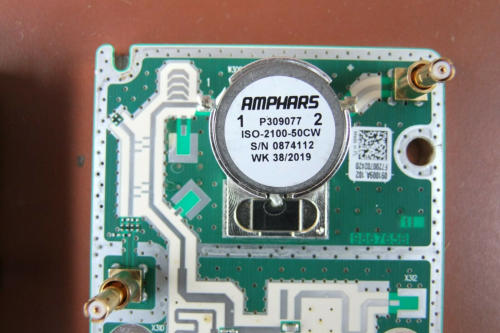

Final isolator MCX Output Connector
More measurements and modifications
Under investigation / construction
UMTS NOKIA BLC10G22XS-600AVT mod.

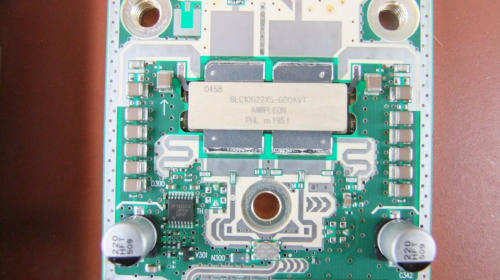

Final PA 10. Generation Doherty PA with ~600W output power. BLC10G22XS-600AVT. This seems to be the biggest PA block in my home.

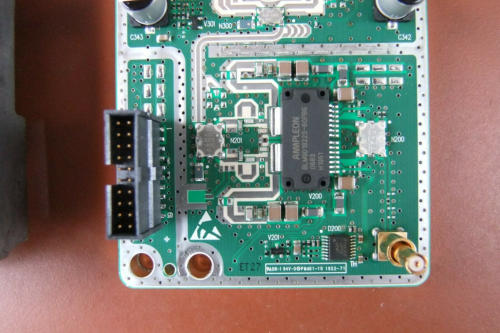

Driver PA with BLM9D1822S-60PBG device.
